AC Hipot Test Set/AC high voltage test set/hipot insulation tester

hits:

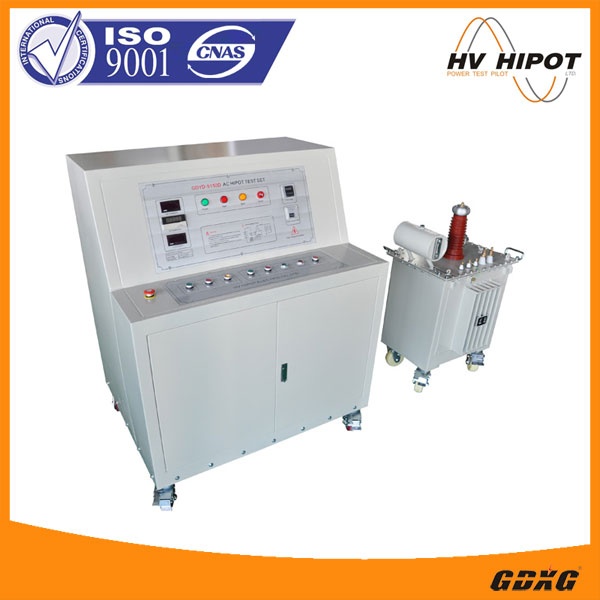

GDYD-5150D is customized and special designed for testing stator winding and generators.

Digital display panel mounted controls & indicators with easy to read legend.
Monitoring high voltage side voltage, low voltage side current and indicator of zero, power, working start, timing.
Over-current protection, zero-starting protection,sound and light alarm.
Continuously variable output from zero to full voltage.
With new type time relay, time rang is more wider (1S ~ 99H).
Using the latest current relay, more accurate and reliable.
Light weight, small size, easy to move.

Power Supply	AC 380V±10%
Frequency	50Hz±1
Output voltage	0-50kV,AC
Capacity	150kVA
HV Source	Insulation Oil
Output control	Manual control
Voltage accuracy	≤1.5% (F.S)
Current Accuracy	≤1.5% (F.S)
Timing range	0-99H
Metering	Digital display, kV meter: AC 0-50kV, mA meter: AC 0-3000mA
Humidity	85% RH
Environmental temperature	-20℃~50℃
Weight	Control Unit:About 300kg Oil Testing Transformer: About 400kg.
